Name: 6-Axle 50CBM 80-100T Box-Type Rear Dump Semi Trailer (Model B)
Brand: HAIZHONG GLOBAL
SKU: 01-09

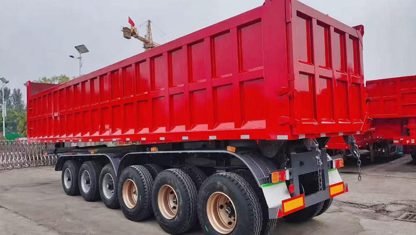

6-Axle 50CBM 80-100T Box-Type Rear Dump Semi Trailer (Model B)

BOX-TYPE REAR DUMP · MODEL 01-09

6 axle 50cbm 80ton - 100ton dump semi trailer tipper are using high strength steel and world famous brand spare parts. HAIZHONG GLOBAL can also provide 3 axle, 4 axle, 5 axle dump semi trailers according to your needs.

Loading Capacity80T- 100T
Axle6 axles

Request Specification Send an Inquiry

Product Description

6 axle 50cbm 80ton - 100ton dump semi trailer tipper are using high strength steel and world famous brand spare parts. HAIZHONG GLOBAL can also provide 3 axle, 4 axle, 5 axle dump semi trailers according to your needs.

Specifications

Material	high strength steel
Loading Capacity	80T- 100T
Axle	6 axles
Tire	24 units, 12.00R22.5
Rim	9.00-22.5 or 9.75-22.5
Suspension	Mechanical, Airbag suspension
Spring Leaf	90 (W) mmx13 (Thickness) mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin	2.0 or 3.5 inch (bolted or welded)
Landing Gear	28tons (double-speed)
Bottom Side Beam	16mm or 18mm steel channel
Brake Chamber	Relay valve; T30/30+T30 spring brake chamber, 45L air tank
Twist Locks	4,8,12 sets (lifting or screw type)
Valve	Specially intended for oversea market
ABS	Optional
Light	LED light (specially intended for oversea market)
Voltage	24V
Tool Box	1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting	Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Specifications shown are reference configurations. Before quoting, we confirm the exact specification with you — dimensions, axle count, tyre size, kingpin size, suspension, ABS and options.
