Name: 5-Axle 60T Box-Type Rear Dump Semi Trailer
Brand: HAIZHONG GLOBAL
SKU: 01-07

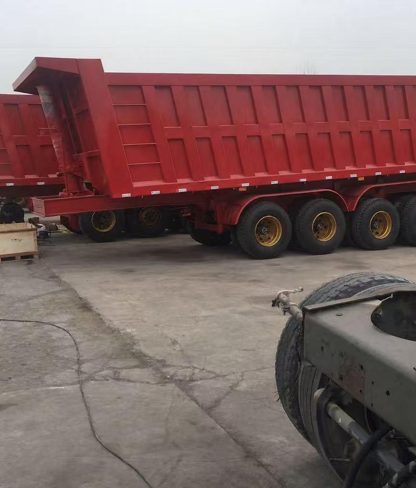

5-Axle 60T Box-Type Rear Dump Semi Trailer

BOX-TYPE REAR DUMP · MODEL 01-07

HAIZHONG GLOBAL supplies dump semi trailers and other kinds of trailer, such as low bed semi trailer, flat bed semi trailer, drop side fence semi trailer, oil fuel tanker trailer, bulk cement tank trailer and others.

Loading Capacity50T-90T
Axle5 axles

Request Specification Send an Inquiry

Product Description

HAIZHONG GLOBAL supplies dump semi trailers and other kinds of trailer, such as low bed semi trailer, flat bed semi trailer, drop side fence semi trailer, oil fuel tanker trailer, bulk cement tank trailer and others.

Regarding the dump semi trailer,3 axle, 4 axle, 6 axle are available. All the dumper semi trailers are adopts high strength steel and world famous brands spare parts.

Specifications

Material	high strength steel
Loading Capacity	50T-90T
Axle	5 axles
Tire	20 units, 12.00R22.5 or 315/80R22.5
Rim	9.00-22.5 or 9.75-22.5
Suspension	Mechanical, Airbag suspension
Spring Leaf	90 (W) mmx13 (Thickness) mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin	2.0 or 3.5 inch (bolted or welded)
Landing Gear	28tons (double-speed)
Bottom Side Beam	16mm or 18mm steel channel
Brake Chamber	Relay valve; T30/30+T30 spring brake chamber, 45L air tank
Twist Locks	4,8,12 sets (lifting or screw type)
Valve	Specially intended for oversea market
ABS	Optional
Light	LED light (specially intended for oversea market)
Voltage	24V
Tool Box	1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting	Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Specifications shown are reference configurations. Before quoting, we confirm the exact specification with you — dimensions, axle count, tyre size, kingpin size, suspension, ABS and options.
