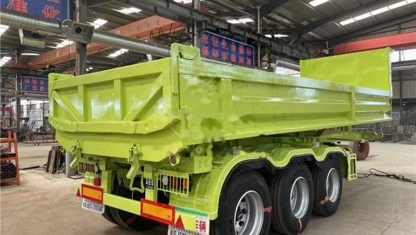

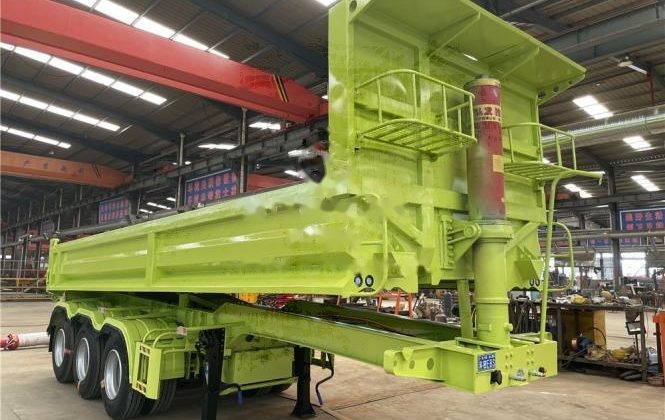

BOX-TYPE REAR DUMP · MODEL 01-06
To meet the requirements of clients, the tri axle 45cbm dump semi trailer tipping trailer are adopts high strength steel, and all the spare parts are using world famous brands.
- Loading Capacity30T-60T
- Axle3 axles
Product Description
To meet the requirements of clients, the tri axle 45cbm dump semi trailer tipping trailer are adopts high strength steel, and all the spare parts are using world famous brands.
Specifications
| Material | high strength steel |
|---|---|
| Loading Capacity | 30T-60T |
| Axle | 3 axles |
| Tire | 12 units, 12.00R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Suspension | Mechanical, Airbag suspension |
| Spring Leaf | 90 (W) mmx13 (Thickness) mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
| King Pin | 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | 28tons (double-speed) |
| Bottom Side Beam | 16mm or 18mm steel channel |
| Brake Chamber | Relay valve; T30/30+T30 spring brake chamber, 45L air tank |
| Twist Locks | 4,8,12 sets (lifting or screw type) |
| Valve | Specially intended for oversea market |
| ABS | Optional |
| Light | LED light (specially intended for oversea market) |
| Voltage | 24V |
| Tool Box | 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |
Specifications shown are reference configurations. Before quoting, we confirm the exact specification with you — dimensions, axle count, tyre size, kingpin size, suspension, ABS and options.
Related Models

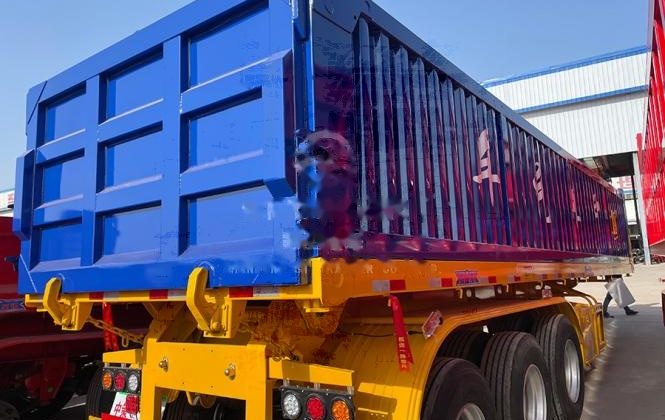

Tri-Axle 60T Box-Type Rear Dump Semi Trailer
