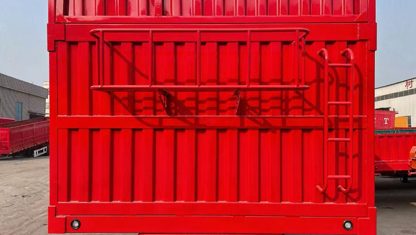

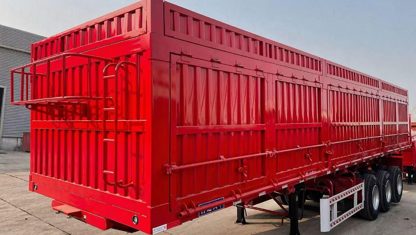

SIDE TIPPER · MODEL 01-11
Tri axle 50ton 3 axle dumper semi trailer tippers adopt high strength steel, and world famous spare parts. HAIZHONG GLOBAL also can provide rear end dump semi trailer tippers according to your final requirements.
- Axle3 axle 13T/16T
- Dimension11000mmx2500mmx3200mm
Product Description
Tri axle 50ton 3 axle dumper semi trailer tippers adopt high strength steel, and world famous spare parts. HAIZHONG GLOBAL also can provide rear end dump semi trailer tippers according to your final requirements.
Specifications
| Dimension | 11000mmx2500mmx3200mm |
|---|---|
| Lifting System | Lifting cylinder 5x130 bore, a shift cylinder |
| Axle | 3 axle 13T/16T |
| Rim | 8.0-20 or 9.00-20 |
| Tire | 8.25R20/10.00R20/11.00R20/12R22.5 |
| Suspension | Mechanical suspension |
| Spring Leaf | 90(W)mmx13(Thickness)mmx10 layers |
| King Pin | 2.0 or 3.5inch(bolted or welded type) |
| Main Beam | Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm, Material: T700 steel. |
| ABS | Optional |
| Light | LED light (especially intended for overseas markets) |
| Voltage | 24V |
| Accessories | One standard tool box, one rocker handle, one Shaft wrench |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of topcoats. |
Specifications shown are reference configurations. Before quoting, we confirm the exact specification with you — dimensions, axle count, tyre size, kingpin size, suspension, ABS and options.
