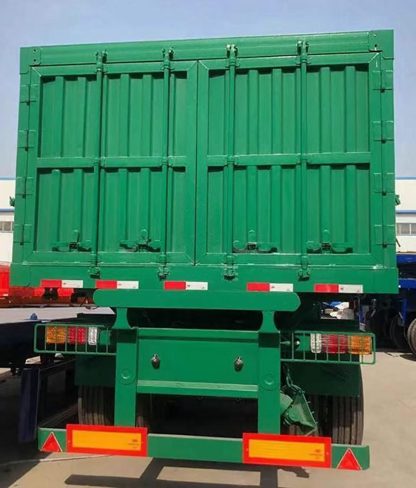

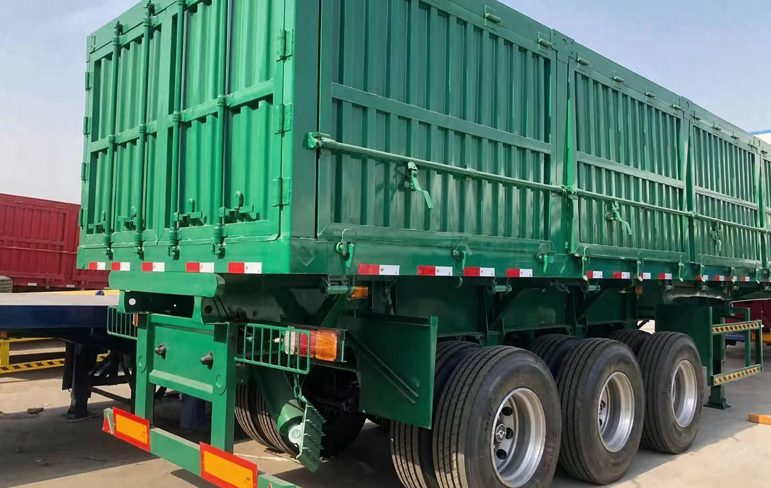

Side Tipper Trailers are attached to a hydraulic mechanism that can tip the entire trailer bowl to the side in order to offload its contents, 3 axle 50CBM dumper semi tipper trailers are widely used in todays' transportion.
- Axle3 axle 13T/16T
- Dimension11000mmx2500mmx3200mm
Product Description
Side Tipper Trailers are attached to a hydraulic mechanism that can tip the entire trailer bowl to the side in order to offload its contents, 3 axle 50CBM dumper semi tipper trailers are widely used in todays' transportion.
It adopts high strength steel, world famous brand spare parts. The loading capacity range can reach to 80ton-100ton, you can choose 3 axles, 4 axles, 5 axles, etc according to your requirements.
Specifications
| Dimension | 11000mmx2500mmx3200mm |
|---|---|
| Lifting System | Lifting cylinder 5x130 bore, a shift cylinder |
| Axle | 3 axle 13T/16T |
| Rim | 8.0-20 or 9.00-20 |
| Tire | 8.25R20/10.00R20/11.00R20/12R22.5 |
| Suspension | Mechanical suspension |
| Spring Leaf | 90(W)mmx13(Thickness)mmx10 layers |
| King Pin | 2.0 or 3.5inch(bolted or welded type) |
| Main Beam | Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm, Material: T700 steel. |
| ABS | Optional |
| Light | LED light (especially intended for overseas markets) |
| Voltage | 24V |
| Accessories | One standard tool box, one rocker handle, one Shaft wrench |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of topcoats. |
Specifications shown are reference configurations. Before quoting, we confirm the exact specification with you — dimensions, axle count, tyre size, kingpin size, suspension, ABS and options.
Related Models

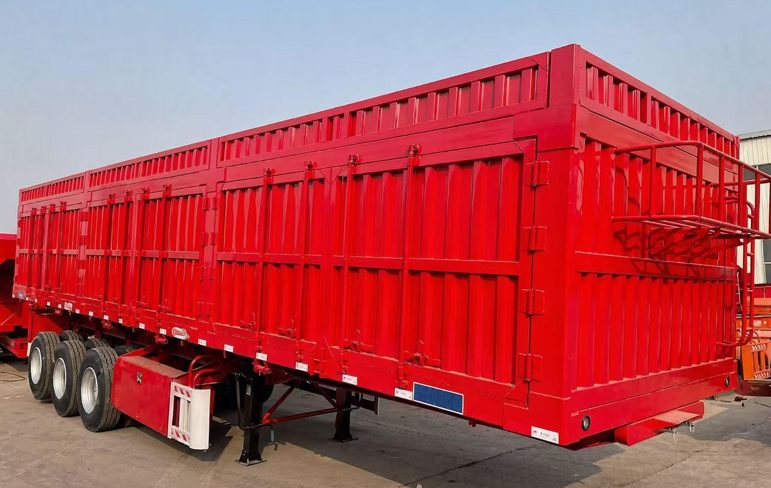

3-Axle 50T Side Tipper Semi Trailer
