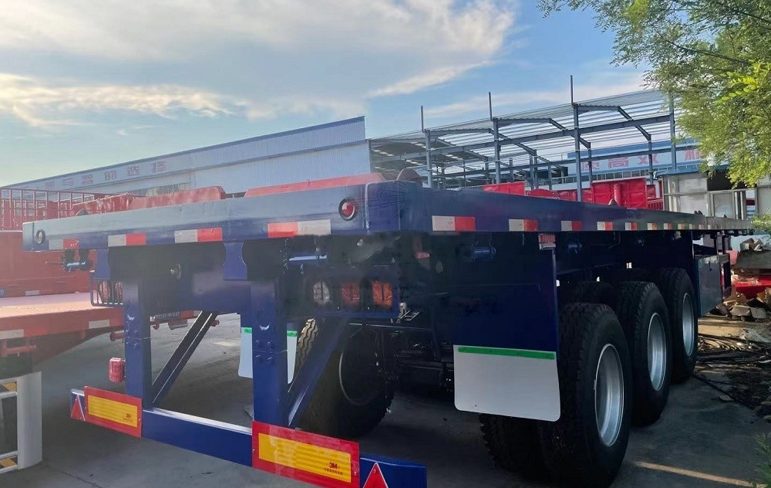

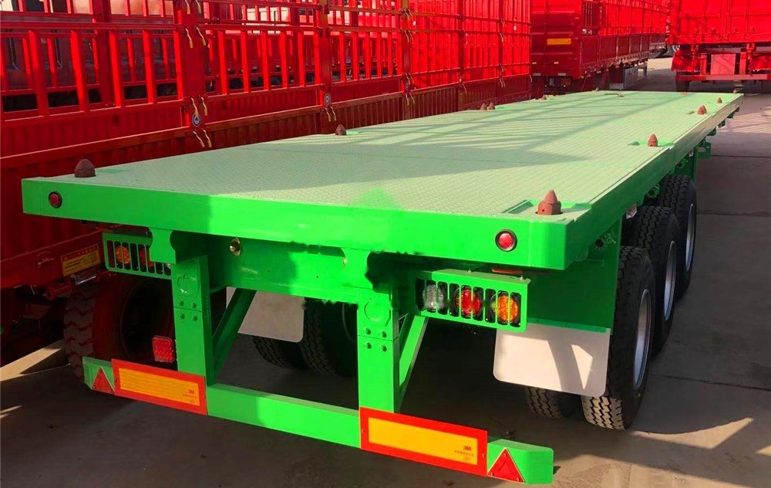

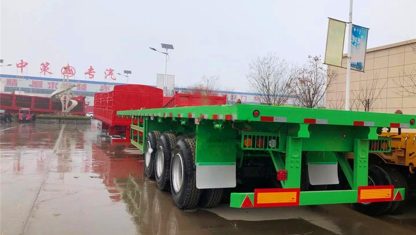

A flatbed trailer is mainly used to transport heavy, oversized and wide cargo such as machinery, building supplies and equipment.
- Loading Capacity30T-80T
- Axles3 axles, 4 axles, 5 axles, 13-16T
- Dimension12500 x 2500 x 3350 mm
Product Description
A flatbed trailer is mainly used to transport heavy, oversized and wide cargo such as machinery, building supplies and equipment.
Generally speaking, a flatbed can carry almost anything that can be stacked or strapped down.
It can also carry 20, 30, 40 and 45 ft containers when fitted with container locks, which secure the containers during transport.
Specifications
| Material | high strength steel |
|---|---|
| Tare Weight | about 7.6T |
| Loading Capacity | 30T-80T |
| Axles | 3 axles, 4 axles, 5 axles, 13-16T |
| Dimension | 12500 x 2500 x 3350 mm |
| Tire | 12 units, 12.00R22.5 or 315/80R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Suspension | Mechanical, Airbag suspension |
| Spring Leaf | 90 (W) mmx13 (Thickness) mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
| King Pin | 2.0 or 3.5 inch (bolted or welded) |
| Main Beam | Height: 500 mm, Upper plate: 14 mm, Middle plate: 8 mm, Bottom plate: 16 mm, Material: Q345B steel |
| Bottom Side Beam | 16 mm or 18 mm steel channel (material: Q235 steel) |
| Platform | 3–5 mm checkered plate |
| Twist Locks | 4, 8 or 12 sets (lifting or screw type) |
| Valve | Specially intended for overseas markets |
| ABS | Optional |
| Light | LED light (specially intended for overseas markets) |
| Voltage | 24V |
| Tool Box | 1m x 0.5m x 0.5m (contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar; size can be tailored to your needs) |
| Painting | Sandblasted, anti-rust chassis surface with 1 layer of anticorrosive primer and 2 layers of top coats |
Specifications shown are reference configurations. Before quoting, we confirm the exact specification with you — dimensions, axle count, tyre size, kingpin size, suspension, ABS and options.
Related Models

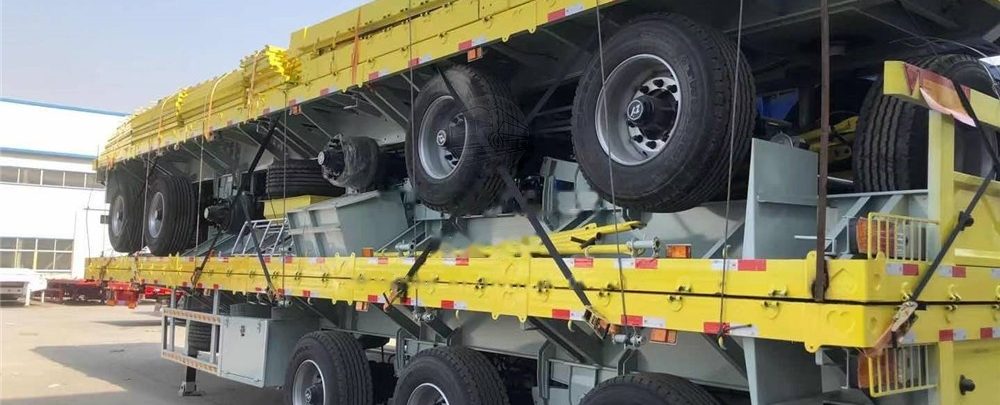

3-Axle 40ft Flatbed Semi Trailer
- Loading Capacity 30T-80T
- Axles 3 axles, 4 axles, 5 axles, 13-16T

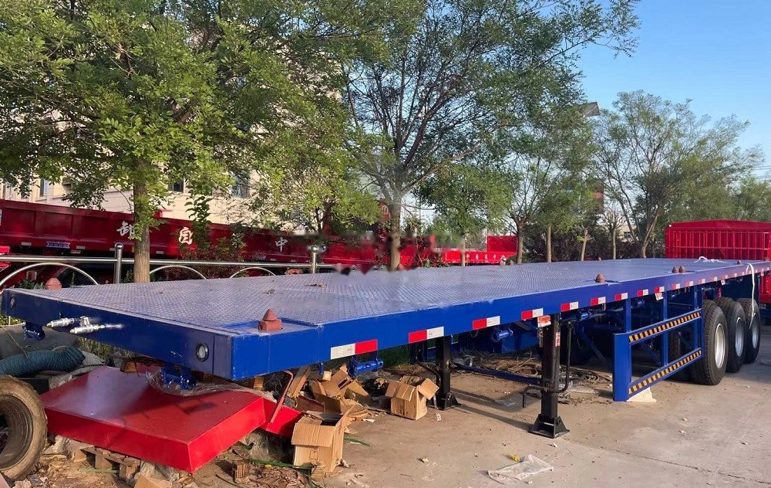

3-Axle 40ft Flatbed Semi Trailer (Model B)
