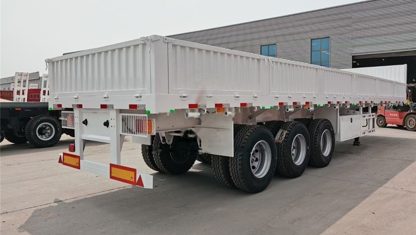

SIDEWALL / DROP SIDE · MODEL 03-08
The dropside trailer is built from high-quality steel with added molybdenum and vanadium alloys, which increase the strength, toughness and low-temperature impact resistance of the main beam.
- Loading Capacity30T-80T
- Axles3 axles, 4 axles, 5 axles, 13-16T
- Dimension12500 x 2500 x 3350 mm
Product Description
The dropside trailer is built from high-quality steel with added molybdenum and vanadium alloys, which increase the strength, toughness and low-temperature impact resistance of the main beam.
Specifications
| Usages | Transportation for sand, stone etc |
|---|---|
| Material | high strength steel |
| Tare Weight | about 7.6T |
| Loading Capacity | 30T-80T |
| Axles | 3 axles, 4 axles, 5 axles, 13-16T |
| Dimension | 12500 x 2500 x 3350 mm |
| Tire | 12 units, 12.00R22.5 or 315/80R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Suspension | Mechanical, Airbag suspension |

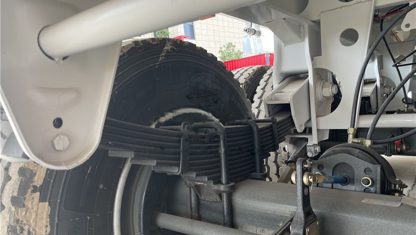

| Spring Leaf | 90 (W) mmx13 (Thickness) mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
| King Pin | 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | 28-ton (double-speed) |
| Main Beam | Height: 500 mm, Upper plate: 14 mm, Middle plate: 8 mm, Bottom plate: 16 mm, Material: Q345B steel |
| Bottom Side Beam | 16 mm or 18 mm steel channel (material: Q235 steel) |
| Platform | 3–5 mm checkered plate |
| Trailer Sides | 600-2000 mm, or box type sides |
| Brake Chamber | Relay valve; T30/30+T30 spring brake chamber, 45 L air tank |
| Twist Locks | 4, 8 or 12 sets (lifting or screw type) |
| Valve | Specially intended for overseas markets |
| ABS | Optional |
| Light | LED light (specially intended for overseas markets) |
| Voltage | 24V |
| Tool Box | 1m x 0.5m x 0.5m (contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar; size can be tailored to your needs) |
| Painting | Sandblasted, anti-rust chassis surface with 1 layer of anticorrosive primer and 2 layers of top coats |
Specifications shown are reference configurations. Before quoting, we confirm the exact specification with you — dimensions, axle count, tyre size, kingpin size, suspension, ABS and options.
