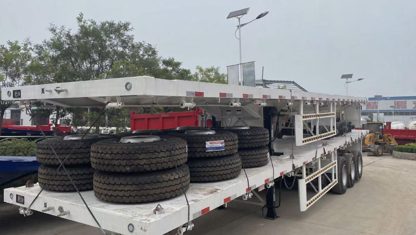

CONTAINER FLATBED · MODEL 02-03
The tri-axle 40ft flatbed trailer is commonly used to transport various bulk cargoes and containers. The 40ft container flatbed semi trailer can carry 1 x 40ft or 2 x 20ft containers.
- Loading Capacity50T
- Axles3 axles, 13T/16T
- Dimension12500 x 2500 x 1550 mm
Product Description
The tri-axle 40ft flatbed trailer is commonly used to transport various bulk cargoes and containers. The 40ft container flatbed semi trailer can carry 1 x 40ft or 2 x 20ft containers.
Specifications
| Model | Tri axle flatbed semi trailer |
|---|---|
| Dimension | 12500 x 2500 x 1550 mm |
| Loading Capacity | 50T |
| Axles | 3 axles, 13T/16T |
| Tire | 12 units, 12.00R22.5 or 315/80R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Suspension | Mechanical suspension or Air suspension |
| Spring Leaf | 90 mm x13 mm x10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
| King Pin | 2.0 or 3.5 inch (bolted or welded) |

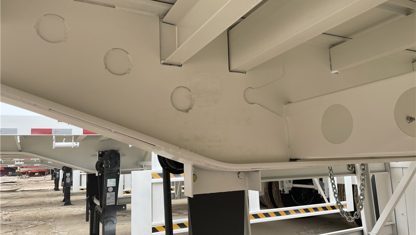

| Main Beam | Height: 500 mm, Upper plate: 14 mm, Middle plate: 8 mm, Bottom plate: 16 mm, Material: Q345B steel |
| Side Beam | 16 mm or 18 mm steel channel (material: Q235 steel) |
| Platform | 3–5 mm checkered plate |
| Brake Chamber | Relay valve; T30/30+T30 spring brake chamber, 45 L air tank |
| Twist Locks | 4, 8 or 12 sets |
| Valve | Specially intended for overseas markets |
| ABS | Optional |
| Light | LED light (specially intended for overseas markets) |
| Tool Box | 1m x 0.5m x 0.5m (contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar; size can be tailored to your needs) |
| Painting | Sandblasted, anti-rust chassis surface with 1 layer of anticorrosive primer and 2 layers of top coats |
Specifications shown are reference configurations. Before quoting, we confirm the exact specification with you — dimensions, axle count, tyre size, kingpin size, suspension, ABS and options.
